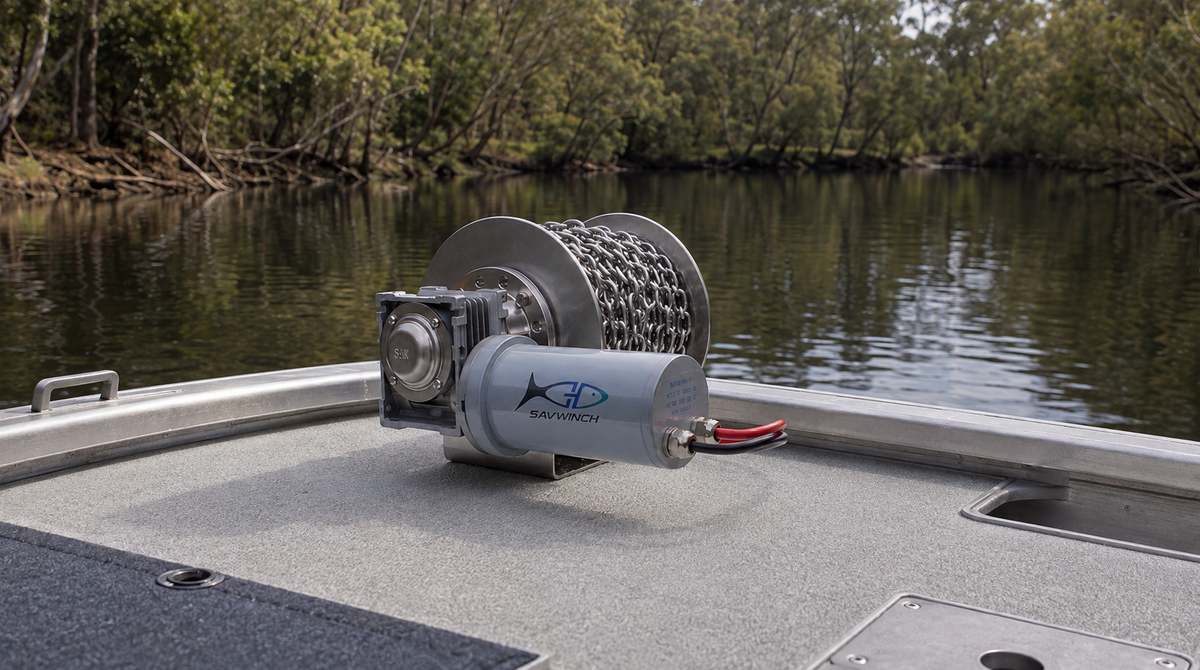

Savwinch Classic Series drum winch mounted on a boat at a marina
Classic Series

CS™ Drum Anchor Winches

Our international award winning Drum Winches feature specifically designed marine graded patented motors and oversized Worm Drive Gearboxes and are IP68 rated to suit even the harshest environments.

The motors can be moved into 12 different positions to ensure that each Anchor Winch can be installed on almost any vessel. Paired with our EFF™ Electronic Fast Fall System our Boat Anchor Winches can reach speeds of over 100m per minute.

The Classic Series (CS™) is our standard range of Drum Winch and has been tested and proven for over a decade.

  • IP68 sealed motor
  • 316 marine stainless
  • 3 yr warranty
Not sure of your size? Find your winch →
What size is your boat?

Your winch model is set by boat length. Pick your length and we'll point you to the right model.

Select your boat length above

On the boundary between two sizes? Go up a model.

Your boat: change
Shop

The Classic Series Range

Clear all
450 CS Drum Anchor Winch
Patented design

450 CS™ Drum Anchor Winch

$1,529.55 AUD
Regular price
Unit price
per
990 CS Drum Anchor Winch
New
Patented design

990CS™ Drum Anchor Winch

$1,807.65 AUD
Regular price
Unit price
per
1000 CS Drum Anchor Winch
Patented design

1000CS™ Drum Anchor Winch

$2,013.65 AUD
Regular price
Unit price
per
1500 CS Drum Anchor Winch
Patented design

1500 CS™ Drum Anchor Winch

$2,327.80 AUD
Regular price
Unit price
per
880 CS Drum Anchor Winch
Patented design

880CS™ Drum Anchor Winch

Sold out
Regular price
Unit price
per

CS™ Series Features

The Classic Series is our entry level Series, it features a double marine grade powder coated steel motor, double marine grade powder coated aluminium gearbox, and a 316 stainless steel drum. As with all of our Winches, the classic series is IP68 rated and features a patented injection mould which fills all of the air pockets inside the motor. The motor is a solid block steel motor (no covers/sleeves over the motor) which combined with the injection mould ensures no moisture or condensation can get inside the motor.

316 Stainless Steel Drum

Complete 316 stainless steel drum.

Self-Locking Worm Drive

Holds the anchor under load, will not back-drive.

Alloy Gearbox

Double marine grade powder coated aluminium gearbox.

Powder Coated Steel Motor

Double marine grade powder coated steel motor, IP68 rated to suit even the harshest environments.

Patented Injection Mould

Fills the air pockets inside the motor so no moisture or condensation can get in.

3 Year Warranty

Backed across Australia and New Zealand.

12 Mounting Positions

The motor can be moved into 12 different positions so it suits almost any vessel.

EFF™ Fast Fall Ready

Pairs with our EFF™ Electronic Fast Fall System to reach speeds of over 100m per minute.

Short-Link Chain Matched

Designed to run short-link chain for snag-free retrieval.

Compare every model

Model Sizes

The model of Anchor Winch you need is determined by the size of your boat. The Classic Series suits all boats up to 8m. Select any row below to view that model.

ModelWidthHeightWeightMax BoatRope Kit Included*
CS™ 450 295mm 190mm 9.75kg 4.5m / 15ft 45m x 6mm DB + 5m chain View ↑
CS™ 880 315mm 210mm 10.5kg 5.2m / 17ft 65m x 6mm DB + 6m chain View ↑
CS™ 990 317mm 210mm 11.5kg 6m / 19ft 65m x 6mm DB + 6m chain View ↑
CS™ 1000 377mm 250mm 18.85kg 7m / 23ft 95m x 7mm DB + 7m chain View ↑
CS™ 1500 377mm 300mm 20.4kg 8m / 26ft 95m x 8mm DB + 8m chain View ↑

All models require short-link chain. Rope kits include pre-spliced double braid rope and chain. *Rope and chain kits may vary on models supplied outside Australia.
