Commercial Series
Experience the ultimate free-fall system with our commercial drum winches for demanding environments.
Speed is everything when getting that prime spot on the water. That's why we've designed the only range of drum winches featuring a true free fall system, because when seconds count, you need a winch that drops fast and steady with precise control.
Crafted to handle the harshest marine conditions, from relentless saltwater exposure to powerful winds, our winches are engineered for lasting strength and exceptional performance. Step up your game and explore Savwinch's commercial winches designed to take on every adventure with confidence.
The motors can be moved into 12 different positions to ensure that each Drum Winch can be installed on almost any vessel.
- Free fall clutch + friction plate
- IP68 sealed motor
- Daily duty heavy salt water
- 316 Stainless motor, gearbox & drum
- 5-17m hull range
Commercial models are sized by hull length and duty cycle. Pick your length and we'll point you to the right model.
On the boundary between two sizes? Go up a model.
The Commercial Series Range
Features For Exceptional Performance
Our internationally award-winning Drum Winches are equipped with specially designed marine-grade patented motors and oversized Worm Drive Gearboxes, all rated IP68 to withstand the harshest environments. This meticulously engineered design allows our Drum Winches to handle heavy loads effortlessly, ensuring that every lift is executed with unparalleled precision.
The Commercial Range is our only range of Drum Winches to feature a true free fall system. While our smaller Winches can utilise our EFF™ Electronic Fast Fall System, the Commercial drum winches can freely drop the anchor, getting you to your mark as fast as the anchor can drop, and are also highly effective for pulling heavy loads in various applications.
The Commercial Winches feature a 316 stainless steel motor, a 316 stainless steel gearbox, and a 316 stainless steel drum, making them ideal for industrial applications. Safety is a top priority, with these winches designed to comply with industry standards and safety protocols. As with all of our Winches, the Commercial Series is IP68-rated and features a patented injection mould that fills all of the air pockets inside the motor. The motor is a solid block Stainless Steel motor (no covers or sleeves over the motor) which combined with the injection mould ensures no moisture or condensation can get inside the motor.
True Free Fall
Drops anchor at gravity speed using a dedicated clutch and friction plate, not a motor brake.
IP68-Sealed Motor
Sealed against dust and continuous water immersion for marine duty in the harshest conditions.
Oversized Worm-Drive Gearbox
Built to handle heavy loads under constant commercial-grade duty, day after day.
Daily-Cycle Salt Water Duty
Engineered for charter vessels, commercial fishing boats, and government craft running multiple anchor cycles a day.
Sized for 5 to 17 Metre Hulls
Drum sizes to suit hulls from 5 to 17 metres, with rope and chain kits specified per install.
Australian Designed & Engineered
International award-winning drum winch technology, designed, owned, and engineered in Australia, built for commercial and large recreational vessels that need speed, reliability, and serious pulling power.
316 Stainless Motor, Gearbox & Drum
Complete 316 stainless steel motor, gearbox, and drum, built for industrial applications.
12 Mounting Positions
The motor can be moved into 12 different positions, so each Drum Winch can be installed on almost any vessel.
Model Sizes
Every dimension side by side. Select any row to view that model.
| Model | Width | Height | Weight | Max Boat | Rope Kit Included* | |
|---|---|---|---|---|---|---|
| Commercial S | 418mm | 210mm | 30kg | 5 - 8m | Custom, quoted per install | View ↑ |
| Commercial L | 476mm | 365mm | 40kg | 8 - 12m | Custom, quoted per install | View ↑ |
| Commercial XL | 550mm | 415mm | 50kg | 9 - 14m | Custom, quoted per install | View ↑ |
| Commercial XXL | 625mm | 465mm | 60kg | 12 - 17m | Custom, quoted per install | View ↑ |
All Commercial Series rope and chain kits are custom-specified per install, so request a quote for your exact configuration. *Rope and chain kits may vary on models supplied outside Australia. Need the manuals? Commercial Series manual · installation manual.
Built To Work Together.

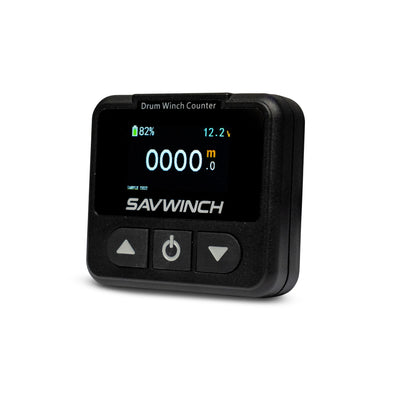

Digital Winch Counter
Track rope and chain deployment at a glance on your Commercial winch.
Shop now →

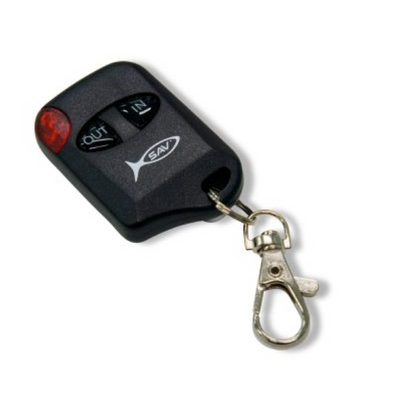

Wireless Remote Control
Operate your Commercial winch from anywhere on deck.
Shop now →

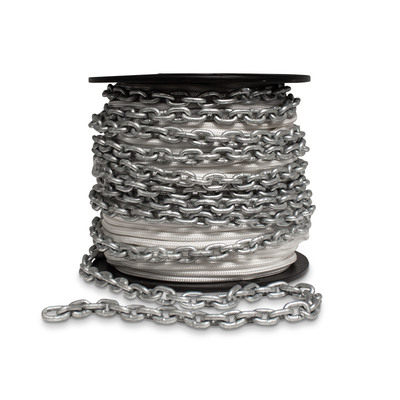

130m Rope And Chain Kit For 4000 Drum Winches
