1000SS™ Drum Anchor Winch

Name: 1000SS™ Drum Anchor Winch
Brand: Savwinch
SKU: 5008
Price: 2310.00 AUD
Availability: InStock

Patented design

$2,310.00 AUD

Sale

inc. GST

Rated 4.9 on Google

Suits Boats Up To7m / 23ft

Motor316 Stainless Steel

WaterproofIP68

Warranty5 years

SKU: 5008

Add To Your Install (Optional) EFF-2S-100 Electronic Fast Fall System +$655.00 Wireless Remote Control +$170.00 Switch With Built In Solenoid For Winches +$170.00

Ticked add-ons go in with Add to cart. Express checkout is hidden while an add-on is ticked.

Dispatched within 3 to 5 business days. Need it sooner? Call us on +61 3 8361 8841. Shipping and returns

Not sure which winch fits your boat? Find out with SavMatch™

Signature 'Stainless Steel Motor' series, featuring 20% more power and speed.

More power, and a 316 stainless steel motor and drum sealed against dust and continuous water immersion.

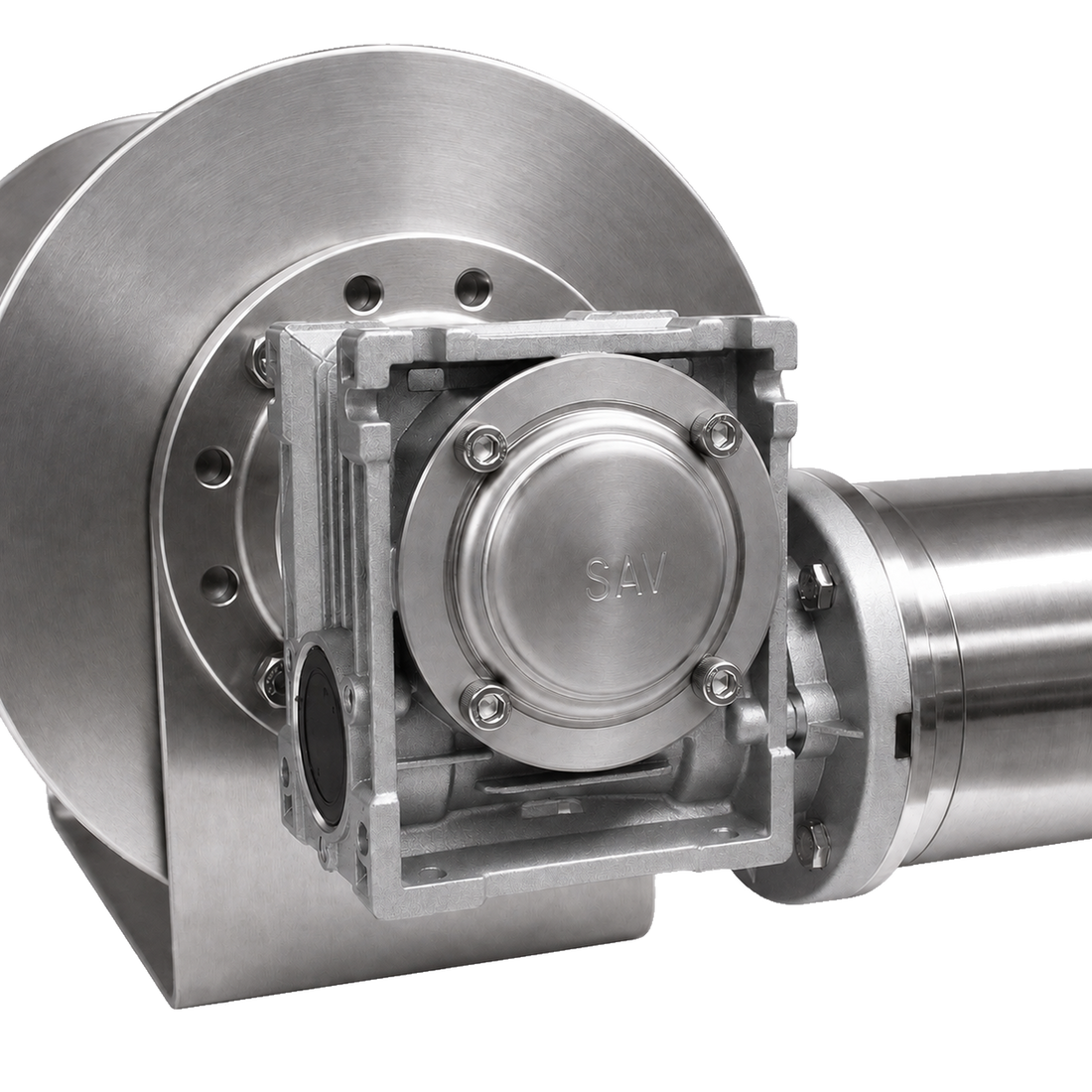

Our international award winning Drum Winches feature specifically designed marine grade patented motors and oversized Worm Drive Gearboxes, and are IP68 rated to suit even the harshest environments. The motors can be moved into 12 different positions to ensure that each Drum Winch can be installed on almost any vessel. Paired with our EFF™ Electronic Fast Fall System, our Drum Winches can reach speeds of over 100m per minute.

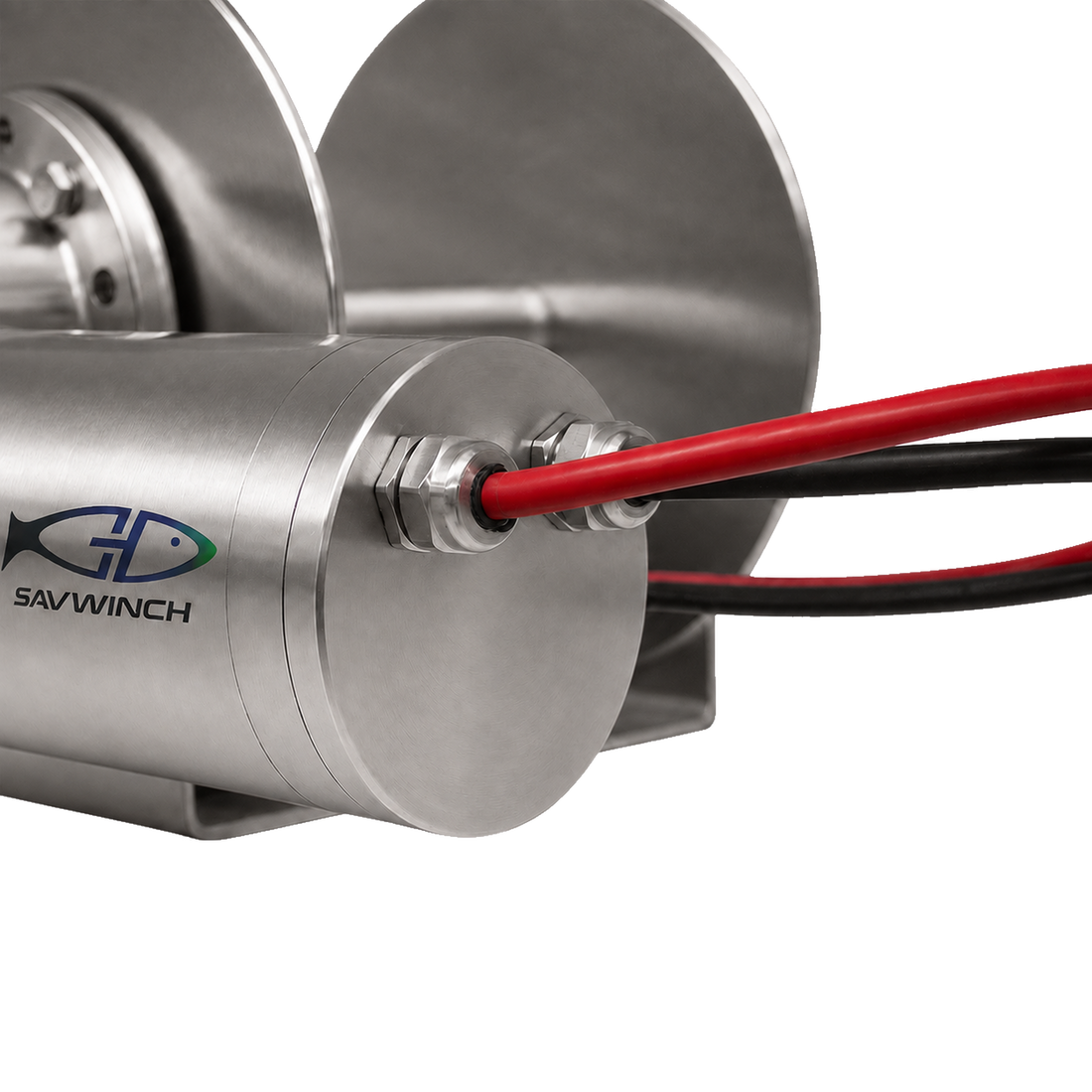

The Signature Series (SS™) features a complete stainless steel motor, designed locally and exclusively for Savwinch. Machined to fine tolerances and utilising O-ring seals, the SS™ series motors are completely submersible without the use of sealants or glues, so corrosion is no longer a concern. The 1000SS package includes 95m of 7mm double braid rope and 7m chain, and is suitable for boats up to 7m (23ft).

Width 377mm, height 250mm. 316 stainless steel motor, aluminium gearbox, 316 stainless steel drum.

Patented technology

Engineered To Survive The Water It Works In E n g i n e e r e d T o S u r v i v e T h e W a t e r I t W o r k s I n

Three things inside this winch that you will not find on a spec sheet comparison.

Savwinch drum winch motor housing shown disassembled with internal components

Patented injection mould P a t e n t e d i n j e c t i o n m o u l d

Sealing the motor was not enough. A patented injection mould fills every air pocket inside the motor, so there is nowhere for condensation to form.

Condensation is one of the main causes of motor failure in the marine industry. Once water takes hold, rust and corrosion follow. The casing is a solid block with no covers or sleeves.

Emergency manual release E m e r g e n c y m a n u a l r e l e a s e

Drop your anchor without power. An allen key disengages the drum so it spins freely, and a hand crank can be fitted to wind the winch back in if your battery fails.

Fitted to the 1000 model and above

Close up of the winch gearbox with the emergency manual release shaft and allen key fitting exposed

EFF™ Electronic Fast Fall System E F F ™ E l e c t r o n i c F a s t F a l l S y s t e m

The world's first Electronic Fast Fall System speeds the motor up on the way down, almost as fast as you can freely drop your anchor. Released in 2011, this award winning patented design is mechanical clutch free.

Every Savwinch drum winch is EFF™ compatible.
