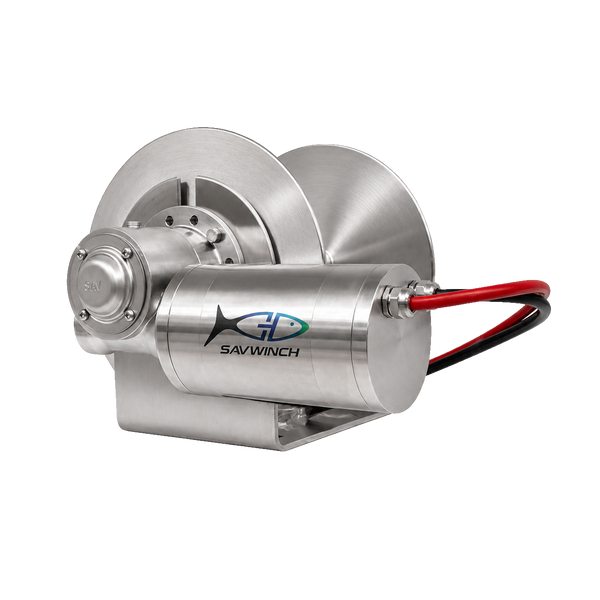

2000 SSS Drum Anchor Winch
2000 SSS Drum Anchor Winch - image 2
2000 SSS Drum Anchor Winch - image 3
2000 SSS Drum Anchor Winch
2000 SSS Drum Anchor Winch - image 2
2000 SSS Drum Anchor Winch - image 3

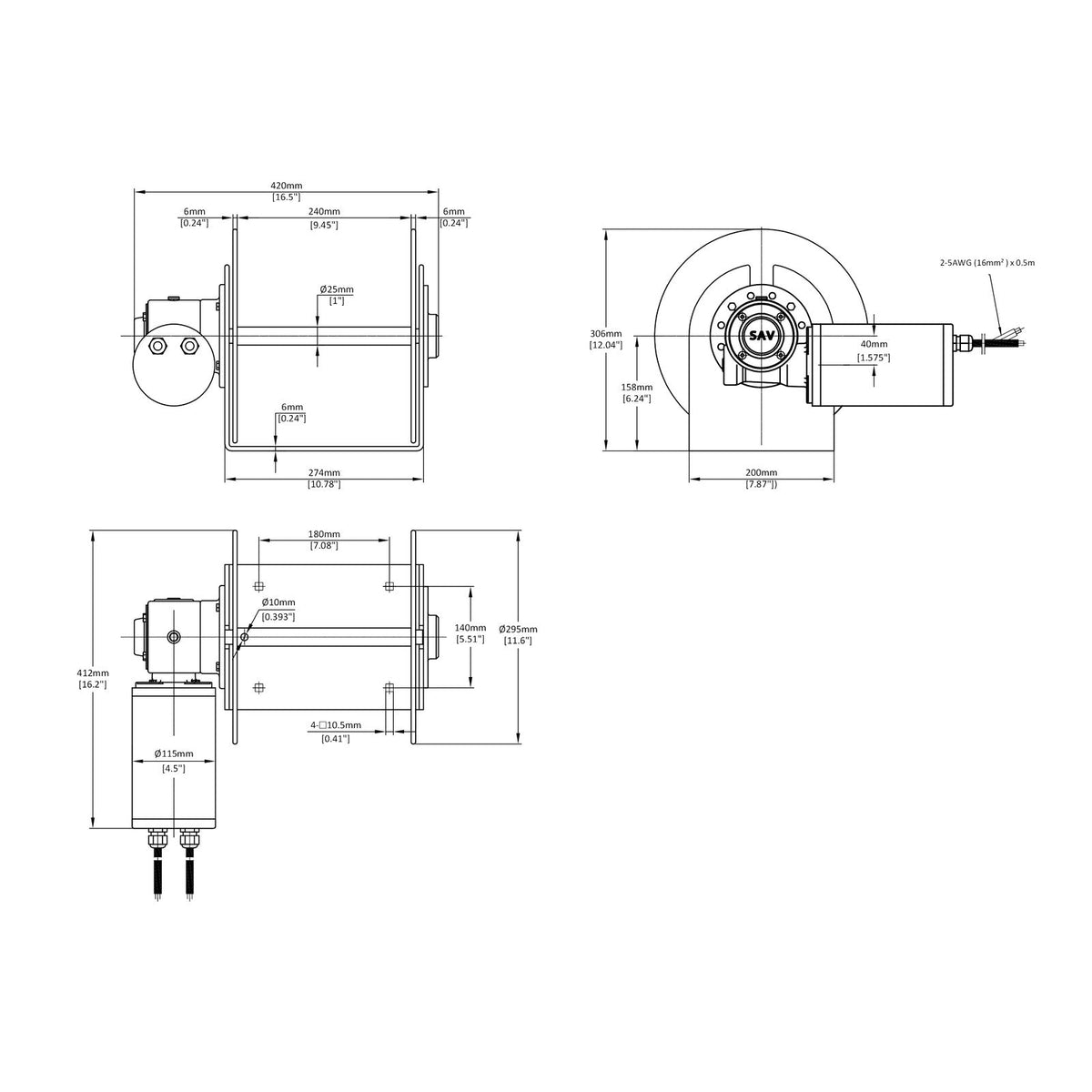

Technical Drawing

2000SSS™ Drum Anchor Winch

Tap or click a drawing to open it full-size in a new tab.

2000SSS™ Drum Anchor Winch

Patented design
Free shipping
$4,017.00 AUD
Sale
Regular price
Unit price
per

inc. GST

Suits Boats Up To10m / 33ft
Motor, Gearbox, Drum316 Stainless Steel
WaterproofIP68
Warranty7 years

Size chart

In stock
SKU: 6016
Add To Your Install (Optional)

Ticked add-ons go in with Add to cart.

Free shipping anywhere in Australia. Add accessories and anchors and they ship free too.

Dispatched within 3 to 5 business days. Need it sooner? Call us on +61 3 8361 8841. Shipping and returns

Get a quote

Not ready to buy online? We'll confirm the fit for your boat and reply within one business day.

The world's first and only complete 316 stainless steel winch.

If you demand the best, this is your winch.

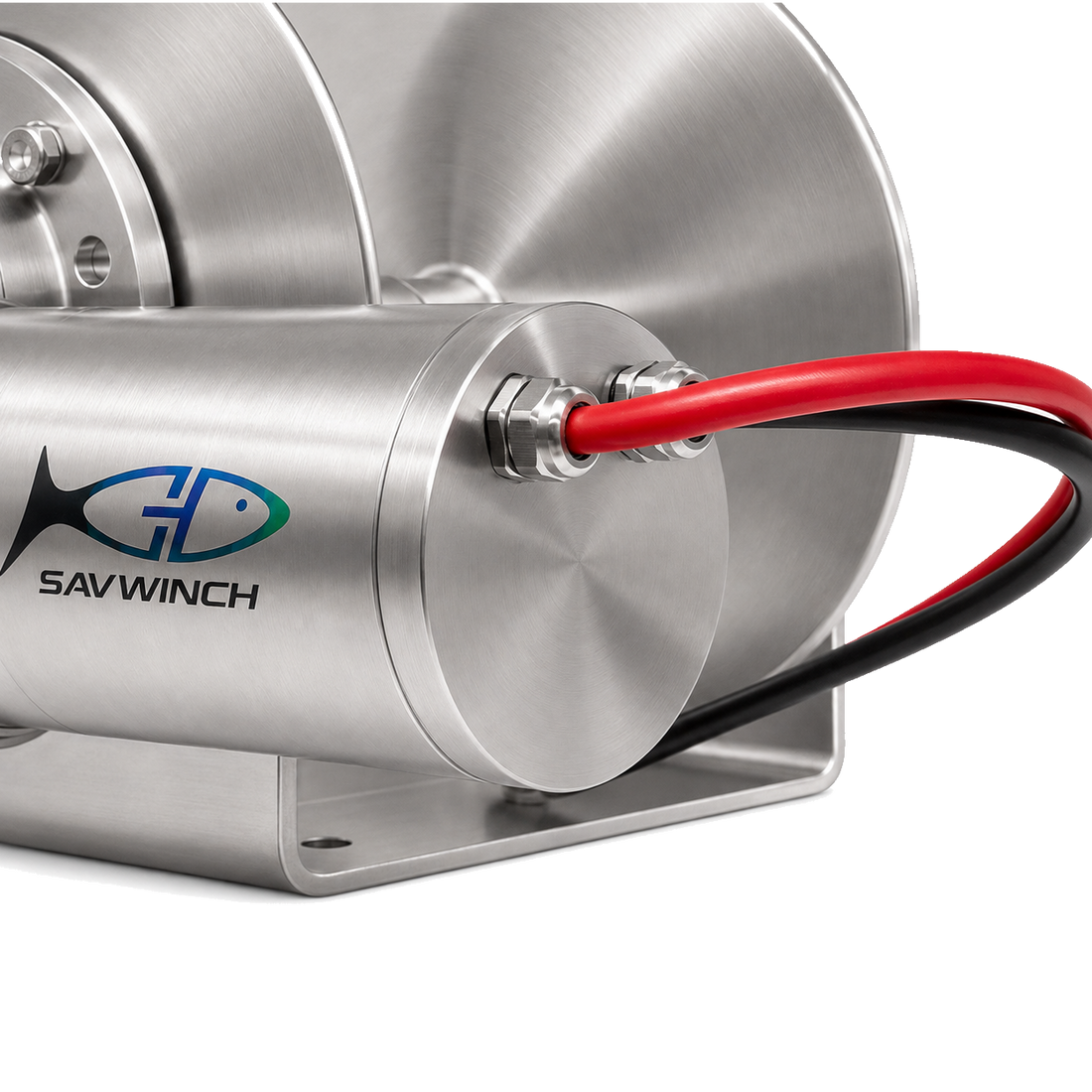

2000 SSS Drum Anchor Winch - image 2
Overview

Our international award winning Drum Winches feature specifically designed marine grade patented motors and oversized Worm Drive Gearboxes, and are IP68 rated to suit even the harshest environments. The motors can be moved into 12 different positions to ensure that each Drum Winch can be installed on almost any vessel. Paired with our EFF™ Electronic Fast Fall System, our Drum Winches can reach speeds of over 100m per minute.

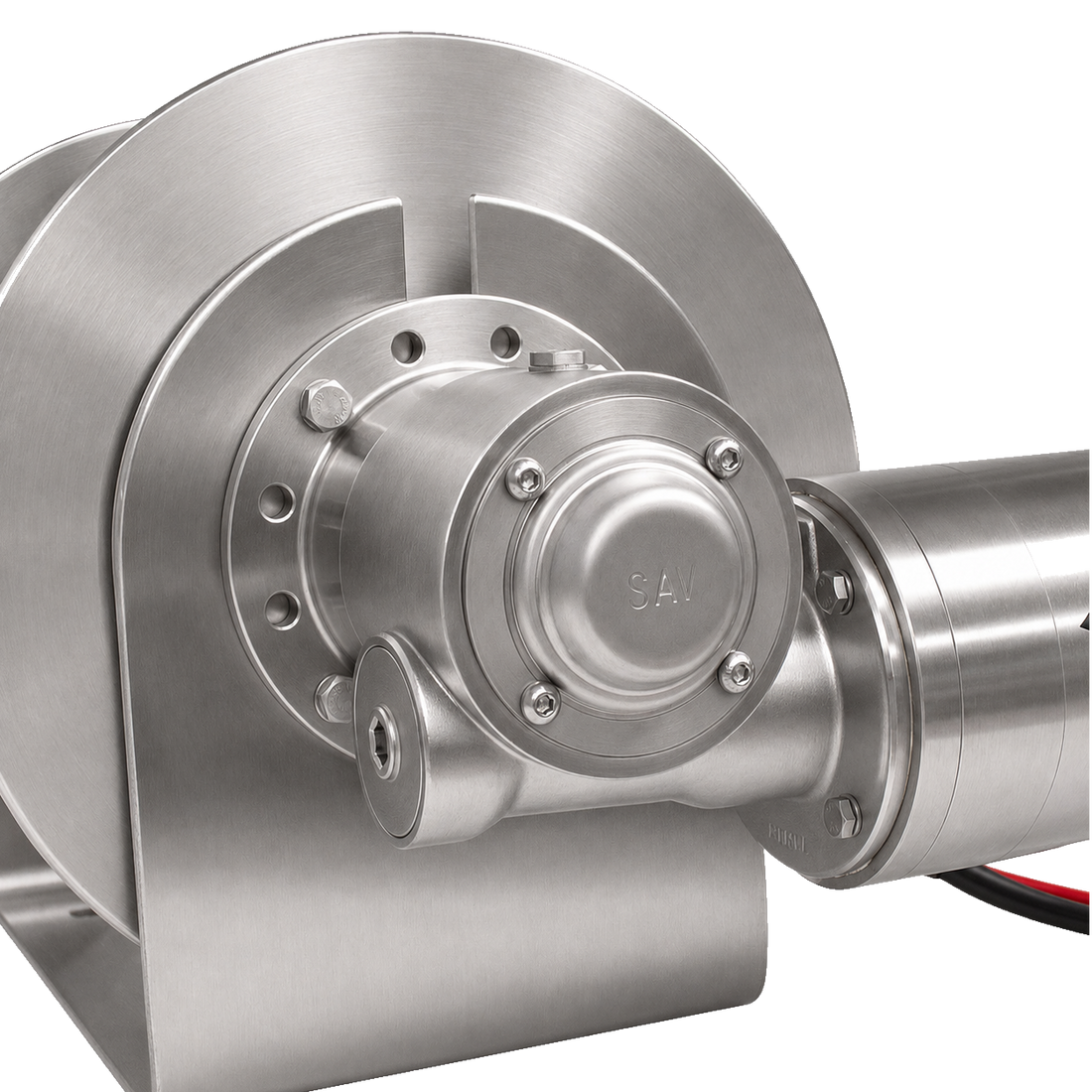

2000 SSS Drum Anchor Winch - image 3
In detail

The Stainless Steel Series (SSS™) is the world's first and only complete 316 stainless steel winch. Like the SS™ range, the SSS™ features a fully sealed 316 stainless steel motor, but also a 316 stainless steel gearbox. Machined to fine tolerances and utilising O-ring seals, the SSS™ series motors are completely submersible without the use of sealants or glues, so corrosion is no longer a concern. This is the Rolls Royce of winches.

At a glance

The 2000SSS package includes 140m of 8mm double braid rope and 10m chain, and is suitable for boats up to 10m (33ft).

Width 419mm, height 306mm. 316 stainless steel motor, gearbox, and drum.

Patented technology

Engineered To Survive The Water It Works In

Three things inside this winch that you will not find on a spec sheet comparison.

Patented injection mould

Sealing the motor was not enough. A patented injection mould fills every air pocket inside the motor, so there is nowhere for condensation to form.

Condensation is one of the main causes of motor failure in the marine industry. Once water takes hold, rust and corrosion follow. The casing is a solid block with no covers or sleeves.

Savwinch drum winch motor housing shown disassembled with internal components

Emergency manual release

Drop your anchor without power. An allen key disengages the drum so it spins freely, and a hand crank can be fitted to wind the winch back in if your battery fails.

Fitted to the 1000 model and above

Close up of the winch gearbox with the emergency manual release shaft and allen key fitting exposed

EFF™ Electronic Fast Fall System

The world's first Electronic Fast Fall System speeds the motor up on the way down, almost as fast as you can freely drop your anchor. Released in 2011, this award winning patented design is mechanical clutch free.

Every Savwinch drum winch is EFF™ compatible.

See the EFF™ range
EFF-2S-100 Electronic Fast Fall System

Product Specification

Series
SSS
Motor
316 Stainless Steel
Gearbox
316 Stainless Steel
Drum
316 Stainless Steel
Fast Fall
EFF™ Compatible
Waterproof
IP68
Voltage
12V (24V on request)
Suits Boats Up To
10m / 33ft
Weight
28.25kg
Width
419mm
Height
306mm
Rope Length
140m (8mm)
Chain Length
10m (8mm)
Warranty
7 years

What's In The Box

Everything you need for a standard install
  • Drum Winch
    Drum Winch
  • Backing Plate & Bolts
    Backing Plate & Bolts
  • Guide Roller
    Guide Roller
  • Up/Down Switch
    Up/Down Switch
  • Circuit Breaker
    Circuit Breaker
  • Anchor Swivel
    Anchor Swivel
  • Solenoid
    Solenoid
  • Rope and Chain
    Rope and Chain

Which Series Is Right for You?

1000 CS Drum Anchor Winch

Classic Series

1000 SS Drum Anchor Winch

Signature Series

1000 SSS Drum Anchor Winch

Stainless Steel Series

Motor

Powder-coated steel

316 Stainless Steel

316 Stainless Steel

Gearbox

Marine-grade aluminium

Marine-grade powder-coated aluminium

Full 316 Stainless Steel

Drum

316 Stainless Steel

316 Stainless Steel

316 Stainless Steel

Max boat size

Up to 8m / 26ft

Up to 30m / 100ft

Up to 30m / 100ft

Warranty (AU/NZ)

3 years

5 years

7 years

EFF™ Fast Fall

Yes

Yes

Yes

Waterproof

IP68

IP68

IP68

Series

Classic Series

Signature Series

Stainless Steel Series
