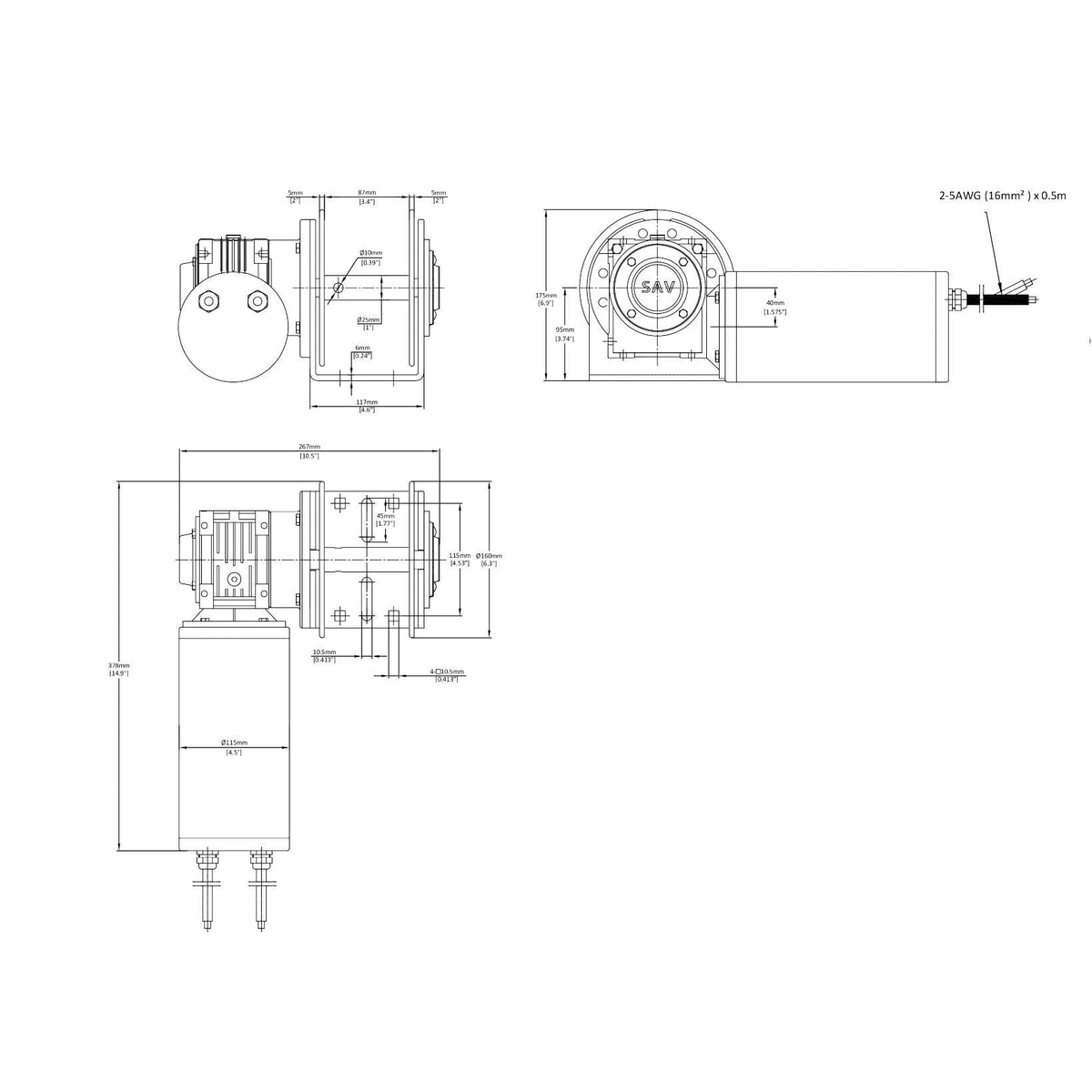

Technical Drawing

3000WH-SSS™ Winch Hauler

Tap or click a drawing to open it full-size in a new tab.

3000WH-SSS™ Winch Hauler

Patented design
$3,357.80 AUD
Regular price
Unit price
per

The Savwinch 3000WH-SSS Motor Kit features a stainless steel motor, paired with a stainless steel gearbox.

Available in 12V and 24V. Oversized motor. Patented IP68 motor and gearbox. No motor cover needed, fully sealed motor. Includes all required brackets and remotes. Fast, durable, reliable.

Each Savwinch Winch Hauler kit includes: 12V/24V motor, 8m x 8mm HMPE rope, oversized gearbox, stainless steel drum, wireless remote, up/down switch, 12V/24V solenoid, and circuit breaker.

Ready to work straight out of the box.

Voltage: 12 Volt

Size chart

In stock, ready to ship
SKU: 9618-12

Confirm your winch's voltage

You've selected 12V. Double check this matches your boat's electrical system, since a winch ordered in the wrong voltage will not run and cannot be swapped after installation.

Product Specification

Series
SSS
Motor
316 Stainless Steel
Gearbox
316 Stainless Steel
Drum
316 Stainless Steel
Waterproof
IP68
Voltage
12V
Rope Material
HMPE Dyneema
Suits Boats Up To
9m / 30ft
Pulling Weight
3.5t
Dead Lift
560kg
Holding Torque
2.8t
Speed
12m/min
Power
1300W
Rope Length
8m (8mm)
Included
Wireless Remote, Up/Down Switch, 12V/24V Solenoid, Circuit Breaker

What's In The Box

Everything included with your winch hauler
  • Winch Hauler
    Winch Hauler
  • Circuit Breaker
    Circuit Breaker
  • Up/Down Switch
    Up/Down Switch
  • Solenoid
    Solenoid
  • HMPE Rope with SS Thimble
    HMPE Rope with SS Thimble
