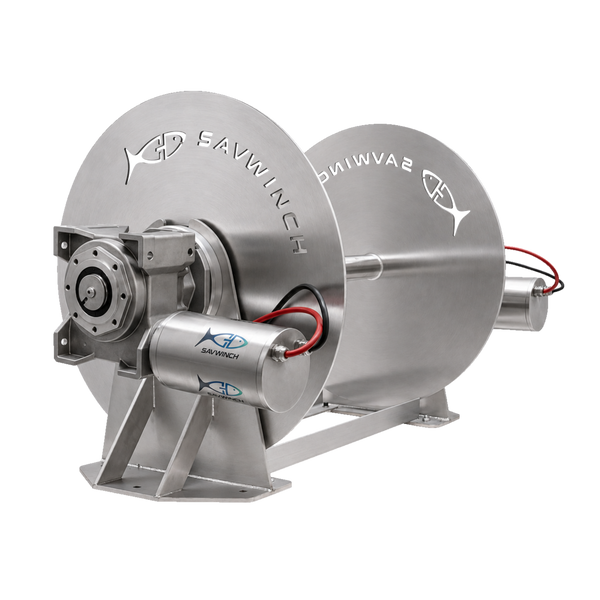

7000 SSS Stainless Steel Drum Anchor Winch

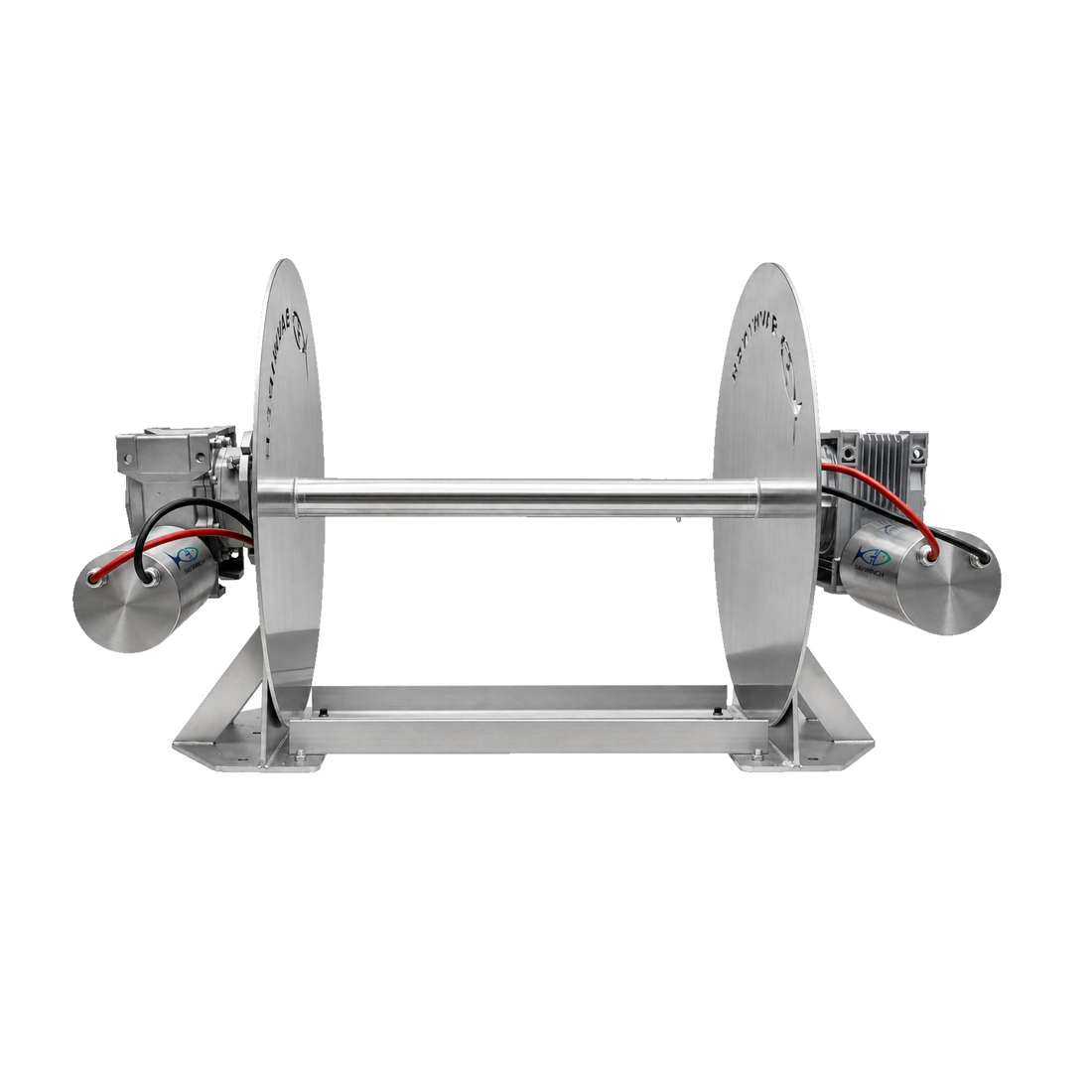

7000 SSS Stainless Steel Drum Anchor Winch - image 2

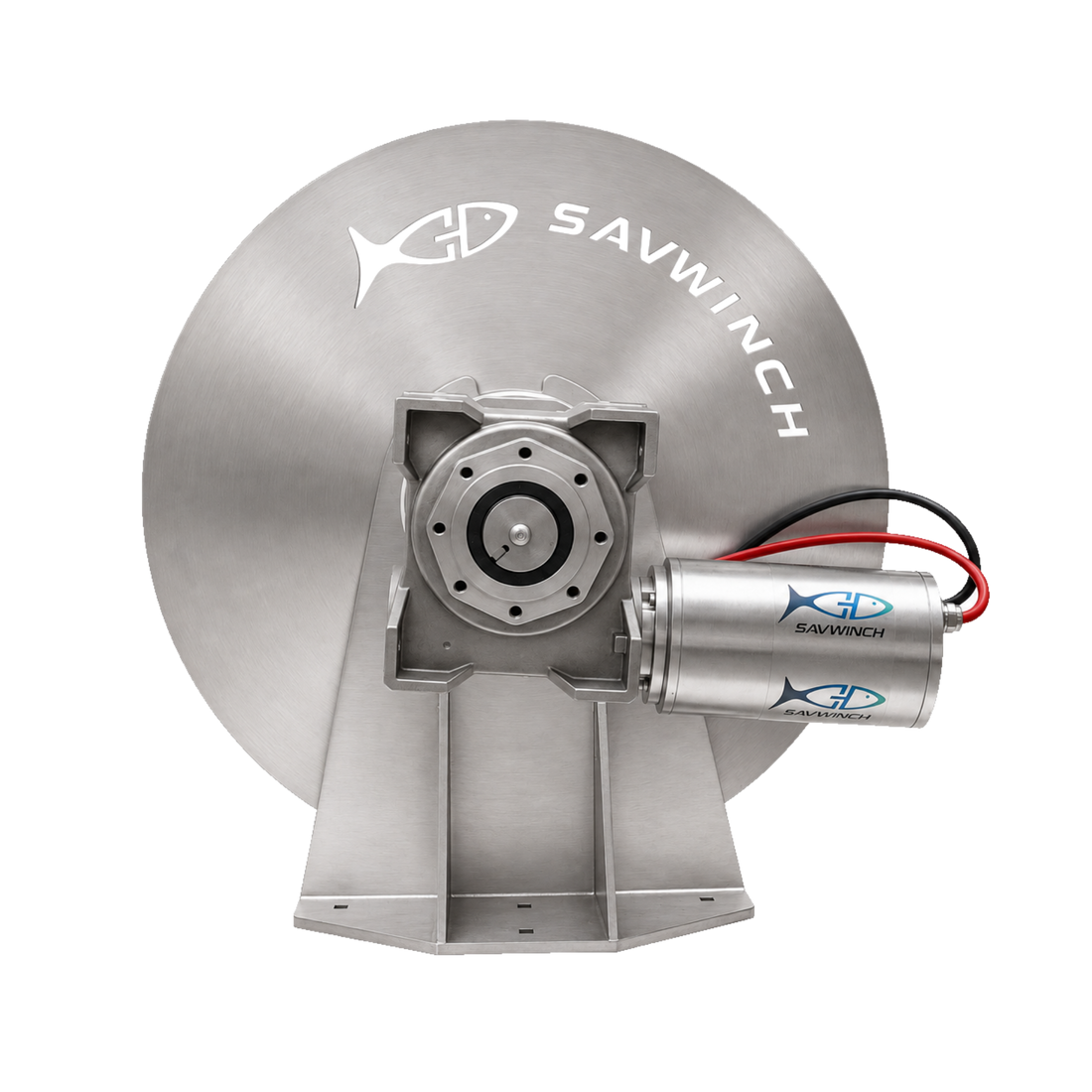

7000 SSS Stainless Steel Drum Anchor Winch - image 3
7000 SSS Stainless Steel Drum Anchor Winch - image 4
7000 SSS Stainless Steel Drum Anchor Winch - image 5
7000 SSS Stainless Steel Drum Anchor Winch
7000 SSS Stainless Steel Drum Anchor Winch - image 2
7000 SSS Stainless Steel Drum Anchor Winch - image 3
7000 SSS Stainless Steel Drum Anchor Winch - image 4
7000 SSS Stainless Steel Drum Anchor Winch - image 5

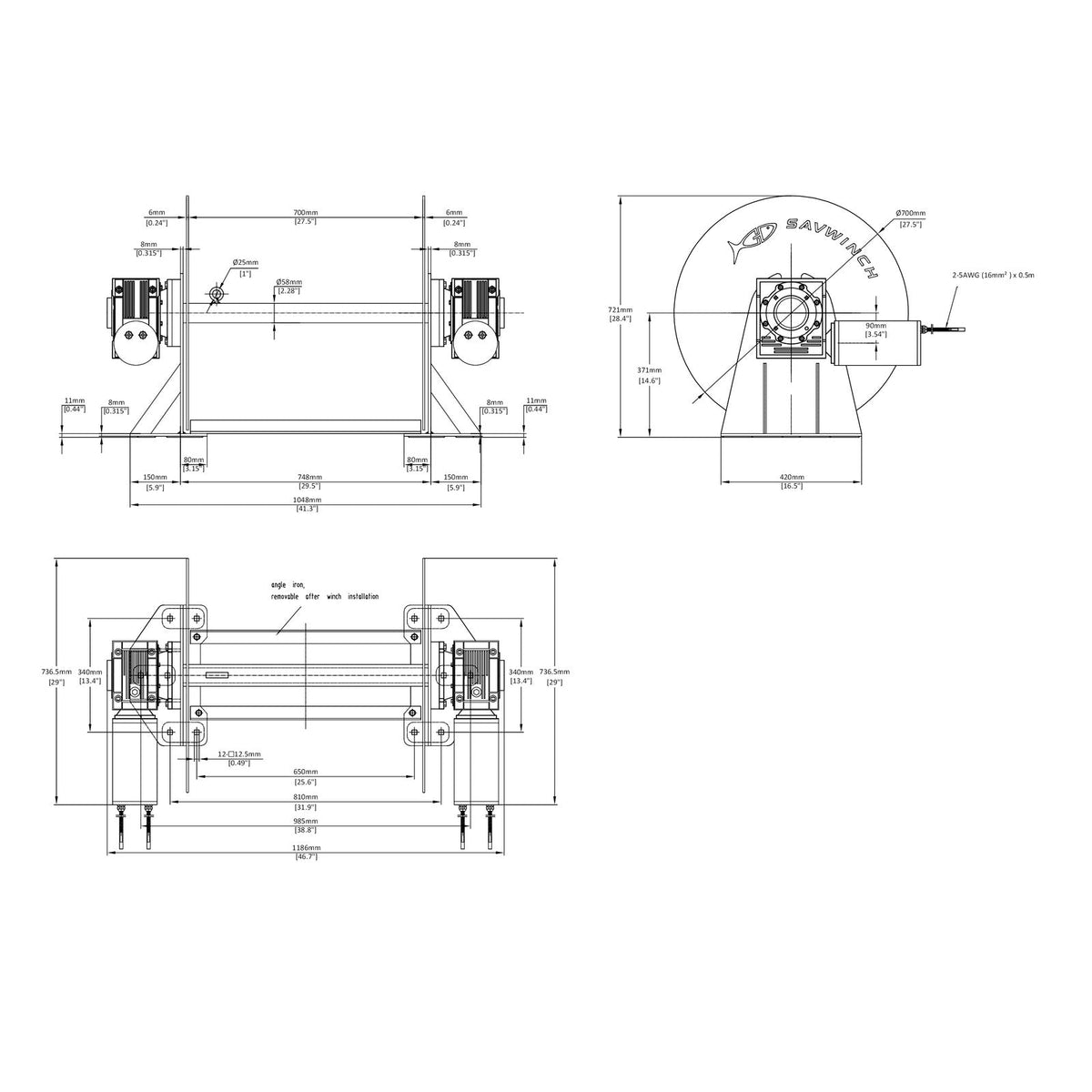

Technical Drawing

7000SSS™ Stainless Steel Drum Anchor Winch

Tap or click a drawing to open it full-size in a new tab.

7000SSS™ Stainless Steel Drum Anchor Winch

Patented design
$20,289.97 AUD
Regular price
Unit price
per

The Savwinch 7000SSS, the world's largest DC drum winch.

Our international award winning Drum Winches feature specifically designed marine grade patented motors and oversized Worm Drive Gearboxes, and are IP68 rated to suit even the harshest environments. The motor can be moved into 12 different positions to ensure that the 7000SSS Drum Winch can be installed on almost any vessel.

The Stainless Steel Series (SSS™) features a complete stainless steel motor and gearbox, designed locally and exclusively for Savwinch. Machined to fine tolerances and utilising O-ring seals, the SSS™ series motors are completely submersible without the use of sealants or glues, so corrosion is no longer a concern. The 7000SSS is suitable for boats up to 30m (98ft).

Width 1235mm, height 721mm. 316 stainless steel motor, gearbox, and drum.

Size chart

SKU: 9117
Available for pre-order. Delivery may take 10 to 15 days.

Product Specification

Series
SSS
Motor
316 Stainless Steel
Gearbox
316 Stainless Steel
Drum
316 Stainless Steel
Fast Fall
EFF™ Compatible
Waterproof
IP68
Voltage
12V/24V
Suits Boats Up To
30m / 100ft
Weight
150kg
Width
1235mm
Height
721mm
Rope Length
Customm
Warranty
7 years

What's In The Box

Custom components selected at order
  • Drum Winch
    Drum Winch
  • Sized Components
    Sized Components
  • Direct Consultation

Patented technology

Engineered To Survive The Water It Works In E n g i n e e r e d   T o   S u r v i v e   T h e   W a t e r   I t   W o r k s   I n

Three things inside this winch that you will not find on a spec sheet comparison.

Which Series Is Right for You?

1000 CS Drum Anchor Winch

Classic Series

1000 SS Drum Anchor Winch

Signature Series

1000 SSS Drum Anchor Winch

Stainless Steel Series

Motor

Powder-coated steel

316 Stainless Steel

316 Stainless Steel

Gearbox

Marine-grade aluminium

Marine-grade powder-coated aluminium

Full 316 Stainless Steel

Drum

316 Stainless Steel

316 Stainless Steel

316 Stainless Steel

Max boat size

Up to 8m / 26ft

Up to 30m / 100ft

Up to 30m / 100ft

Warranty (AU/NZ)

3 years

5 years

7 years

EFF™ Fast Fall

Yes

Yes

Yes

Waterproof

IP68

IP68

IP68

Series

Classic Series

Signature Series

Stainless Steel Series
