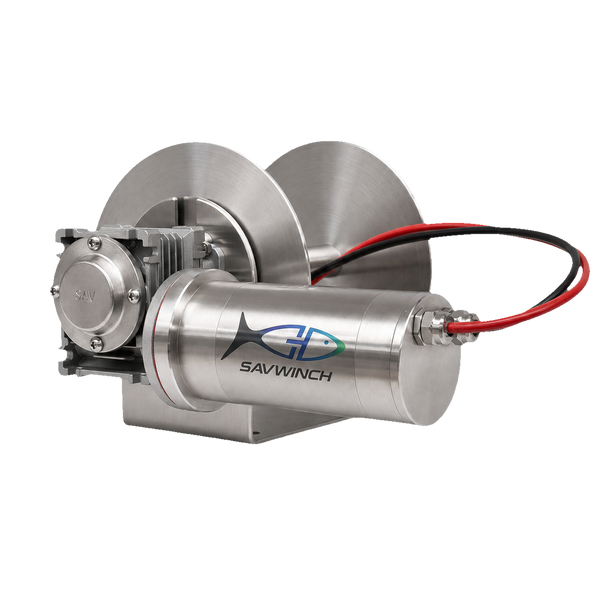

880 SS Drum Anchor Winch
880 SS Drum Anchor Winch - image 2
880 SS Drum Anchor Winch - image 3
880 SS Drum Anchor Winch
880 SS Drum Anchor Winch - image 2
880 SS Drum Anchor Winch - image 3

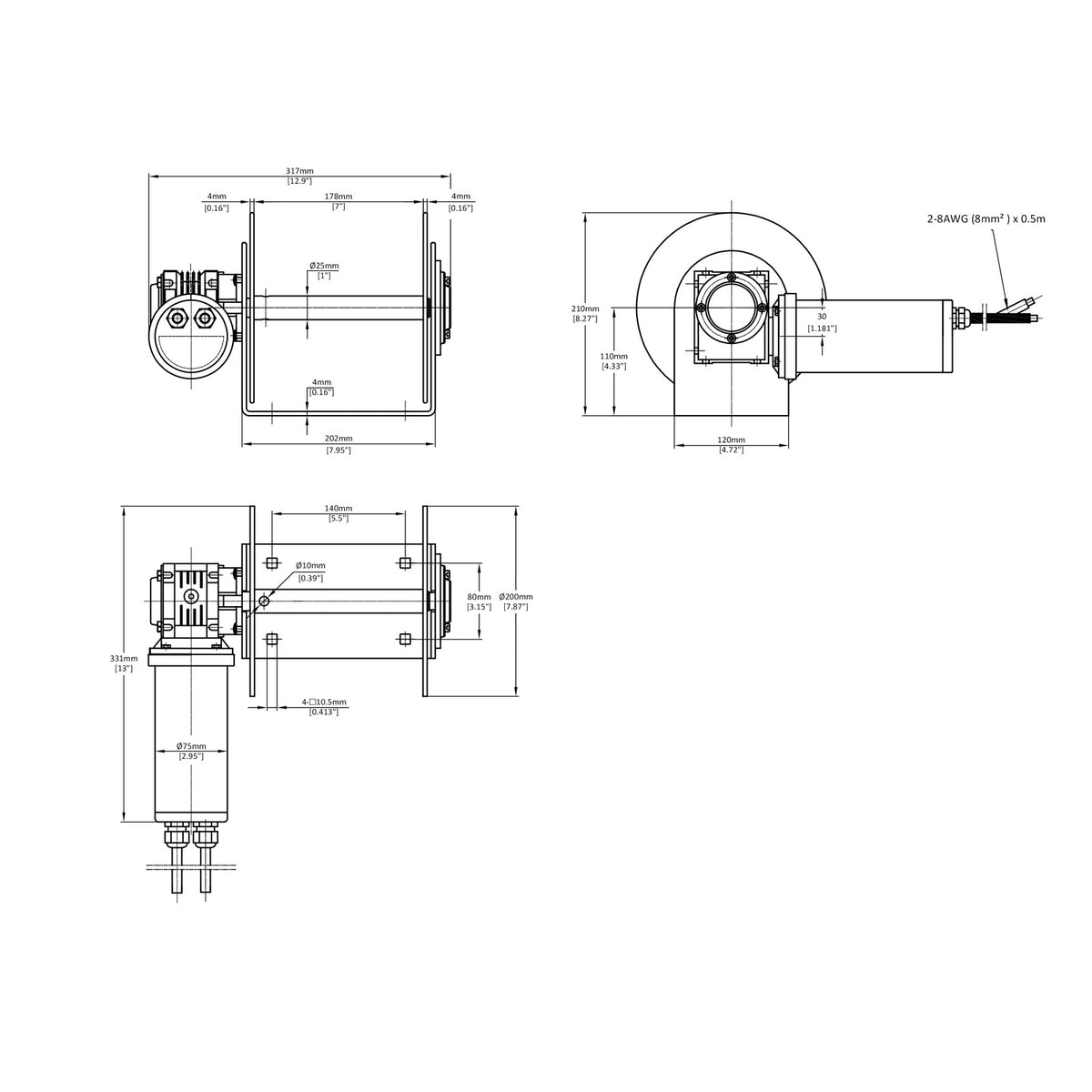

Technical Drawing

880SS™ Drum Anchor Winch

Technical drawing of 880SS™ Drum Anchor Winch

Tap or click a drawing to open it full-size in a new tab.

880SS™ Drum Anchor Winch

Patented design
Free shipping
Sold out
Regular price
Unit price
per

inc. GST
Suits Boats Up To5.2m / 17ft
Motor316 Stainless Steel
WaterproofIP68
Warranty5 years

Size chart
SKU: 5004
Add To Your Install (Optional)

Ticked add-ons go in with Add to cart.
Not sure which winch fits your boat? Find out with SavMatch™

This model has been superseded by the 990SS™ Drum Anchor Winch.

 View the 990SS™ Drum Anchor Winch V V i i e e w w   t t h h e e   9 9 9 9 0 0 S S S S ™ ™   D D r r u u m m   A A n n c c h h o o r r   W W i i n n c c h h
Get a quote

Not ready to buy online? We'll confirm the fit for your boat and reply within one business day.

Signature 'Stainless Steel Motor' series, featuring 20% more power and speed.

More power, and a 316 stainless steel motor and drum sealed against dust and continuous water immersion.

880 SS Drum Anchor Winch - image 2
Overview

Our international award winning Drum Winches feature specifically designed marine grade patented motors and oversized Worm Drive Gearboxes, and are IP68 rated to suit even the harshest environments. The motors can be moved into 12 different positions to ensure that each Drum Winch can be installed on almost any vessel. Paired with our EFF™ Electronic Fast Fall System, our Drum Winches can reach speeds of over 100m per minute.

880 SS Drum Anchor Winch - image 3
In detail

The Signature Series (SS™) features a complete stainless steel motor, designed locally and exclusively for Savwinch. Machined to fine tolerances and utilising O-ring seals, the SS™ series motors are completely submersible without the use of sealants or glues, so corrosion is no longer a concern. The 880SS package includes 65m of 6mm double braid rope and 6m chain, and is suitable for boats up to 5.2m (17ft).

At a glance

Width 315mm, height 210mm. 316 stainless steel motor, aluminium gearbox, 316 stainless steel drum.

Patented technology

Engineered To Survive The Water It Works In

Two things inside this winch that you will not find on a spec sheet comparison.

Patented injection mould

Sealing the motor was not enough. A patented injection mould fills every air pocket inside the motor, so there is nowhere for condensation to form.

Condensation is one of the main causes of motor failure in the marine industry. Once water takes hold, rust and corrosion follow. The casing is a solid block with no covers or sleeves.

Savwinch drum winch motor housing shown disassembled with internal components

EFF™ Electronic Fast Fall System

The world's first Electronic Fast Fall System speeds the motor up on the way down, almost as fast as you can freely drop your anchor. Released in 2011, this award winning patented design is mechanical clutch free.

Every Savwinch drum winch is EFF™ compatible.

See the EFF™ range
EFF-2S-100 Electronic Fast Fall System

Product Specification

Series
SS
Motor
316 Stainless Steel
Gearbox
Alloy
Drum
316 Stainless Steel
Fast Fall
EFF™ Compatible
Waterproof
IP68
Voltage
12V (24V on request)
Suits Boats Up To
5.2m / 17ft
Weight
10.5kg
Width
315mm
Height
210mm
Rope Length
65m (6mm)
Chain Length
6m (6mm)
Warranty
5 years

What's In The Box

Everything you need for a standard install
  • Drum Winch
    Drum Winch
  • Backing Plate & Bolts
    Backing Plate & Bolts
  • Guide Roller
    Guide Roller
  • Up/Down Switch
    Up/Down Switch
  • Circuit Breaker
    Circuit Breaker
  • Anchor Swivel
    Anchor Swivel
  • Solenoid
    Solenoid
  • Rope and Chain
    Rope and Chain

Which Series Is Right for You?
1000 CS Drum Anchor Winch

Classic Series
1000 SS Drum Anchor Winch

Signature Series
1000 SSS Drum Anchor Winch

Stainless Steel Series
Motor

Powder-coated steel

316 Stainless Steel

316 Stainless Steel
Gearbox

Marine-grade aluminium

Marine-grade powder-coated aluminium

Full 316 Stainless Steel
Drum

316 Stainless Steel

316 Stainless Steel

316 Stainless Steel
Max boat size

Up to 8m / 26ft

Up to 30m / 100ft

Up to 30m / 100ft
Warranty (AU/NZ)

3 years

5 years

7 years
EFF™ Fast Fall

Yes

Yes

Yes
Waterproof

IP68

IP68

IP68
Series

Classic Series

Signature Series

Stainless Steel Series
View more V V i i e e w w   m m o o r r e e
  • 5 stars: 5 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
Marine Care

Running the 880 SS on my Horizon 632 Sports Fisher paired with a Sav Slide Anchor. Just put it through a serious workout out on the reef and it handled everything without a hitch. Genuinely use and recommend this winch.

A
Alfred Chetcuti

Had the 880 SS installed and it's a brilliant piece of kit. The whole unit is solid, well-made, and it's transformed the experience on the water. Can't wait to use it out fishing.

R
Roger Bayzand

Installation on my Firestar 530 went smoothly - the hardest part was removing the old bow roller and bollard. Took the 880 SS out in 38 metres this week and it functioned perfectly, just as advertised. Running it with 100m of Dyneema and a Mooloolaba pick. Exactly what I needed.

C
Christian

Great product and great service from the guys at savwinch thanks fellas

C
Chris Giffen

I recently had a retainer problem with the UP-Down switch for my Savwinch 880SS which has always functioned perfectly. I reported the issue and Callum, from Savwinch sent me a new replacement switch that arrived at my door-step within 2 days. Great product back-up with prompt service response!
