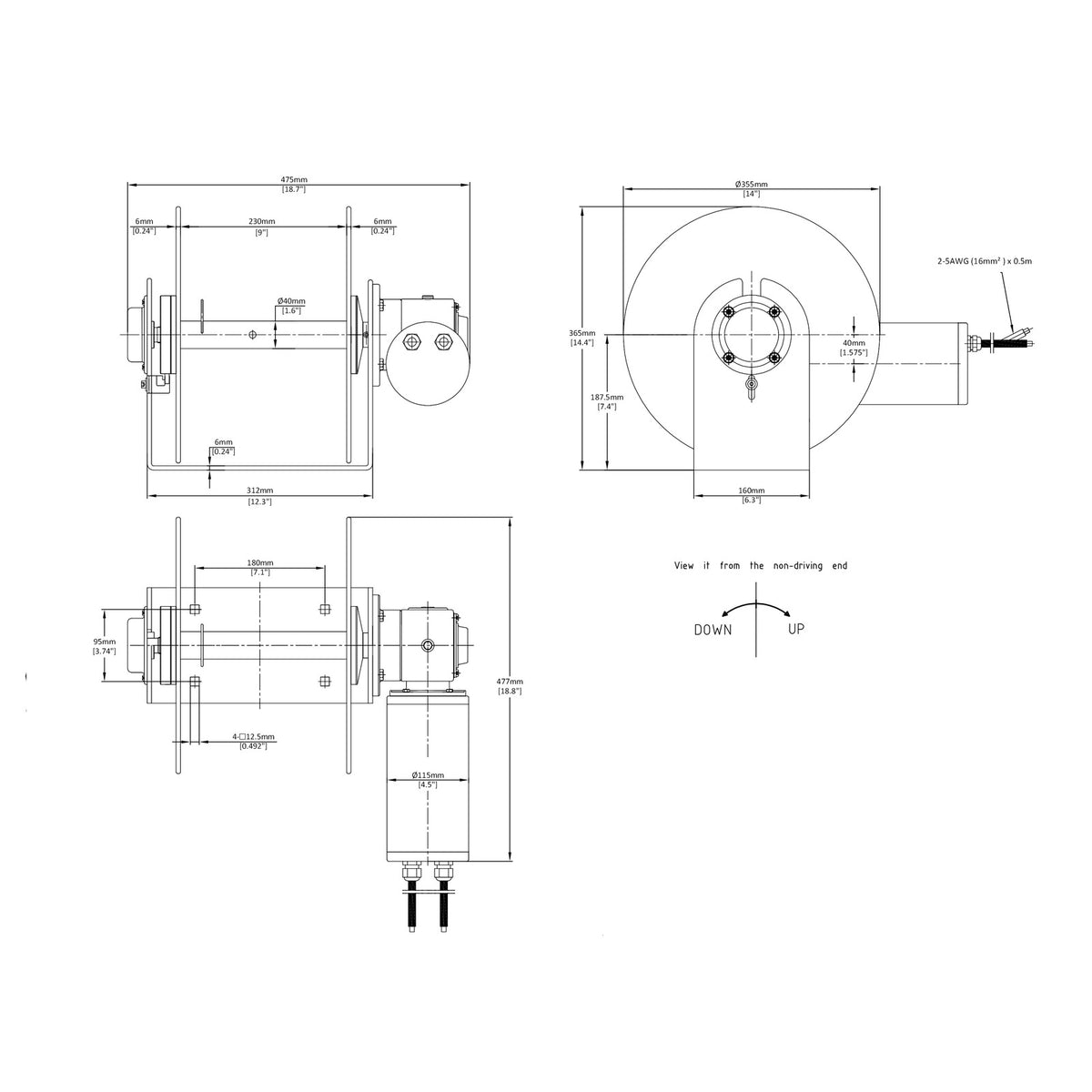

Technical Drawing

Commercial L Drum Anchor Winch

Tap or click a drawing to open it full-size in a new tab.

Commercial L Drum Anchor Winch

Patented design
Free shipping
$5,145.83 AUD
Sale
Regular price
Unit price
per

inc. GST

4.9 on Google
Suits Boats Up To8-12m
Motor, Gearbox, Drum316 Stainless Steel
WaterproofIP68
Fast FallTrue Free Fall

Size chart

In stock
SKU: 9004
Add To Your Install (Optional)

Ticked add-ons go in with Add to cart.

Free shipping anywhere in Australia. Add accessories and anchors and they ship free too.

Dispatched within 3 to 5 business days. Need it sooner? Call us on +61 3 8361 8841. Shipping and returns

Get a quote

Not ready to buy online? We'll confirm the fit for your boat and reply within one business day.

A True Free Fall Drum Winch For Large Vessels

Drop fast. Hold hard. Built for commercial use.

A Savwinch commercial marine winch with a brushed stainless steel drum
Overview

Our international award winning Drum Winches feature specifically designed marine grade patented motors and oversized Worm Drive Gearboxes and are IP68 rated to suit even the harshest environments. The motors can be moved into 12 different positions to ensure that each Drum Winch can be installed on almost any vessel.

Drawing
In detail

The Commercial Range is our only range of Drum Winches to feature a true free fall system. While our smaller Winches can utilise our EFF™ Electronic Fast Fall System, the Commercial L can freely drop the anchor, getting you to your mark as fast as the anchor can drop.

At a glance

Includes an Up/Down Switch, Solenoid, Circuit Breaker, Guide Roller and Free Fall Accessories. Custom rope kits are available on request. Suitable for boats up to 12m (40ft).

Patented technology

Engineered To Survive The Water It Works In

Two things inside this winch that you will not find on a spec sheet comparison.

Patented injection mould

Sealing the motor was not enough. A patented injection mould fills every air pocket inside the motor, so there is nowhere for condensation to form.

Condensation is one of the main causes of motor failure in the marine industry. Once water takes hold, rust and corrosion follow. The casing is a solid block with no covers or sleeves.

Savwinch drum winch motor housing shown disassembled with internal components

Emergency manual release

Drop your anchor without power. An allen key disengages the drum so it spins freely, and a hand crank can be fitted to wind the winch back in if your battery fails.

Close up of the winch gearbox with the emergency manual release shaft and allen key fitting exposed

Product Specification

Series
Commercial
Motor
316 Stainless Steel
Gearbox
316 Stainless Steel
Drum
316 Stainless Steel
Fast Fall
True Free Fall
Waterproof
IP68
Voltage
12V (24V on request)
Suits Boats Up To
8-12m
Weight
40kg
Width
476mm
Height
365mm
