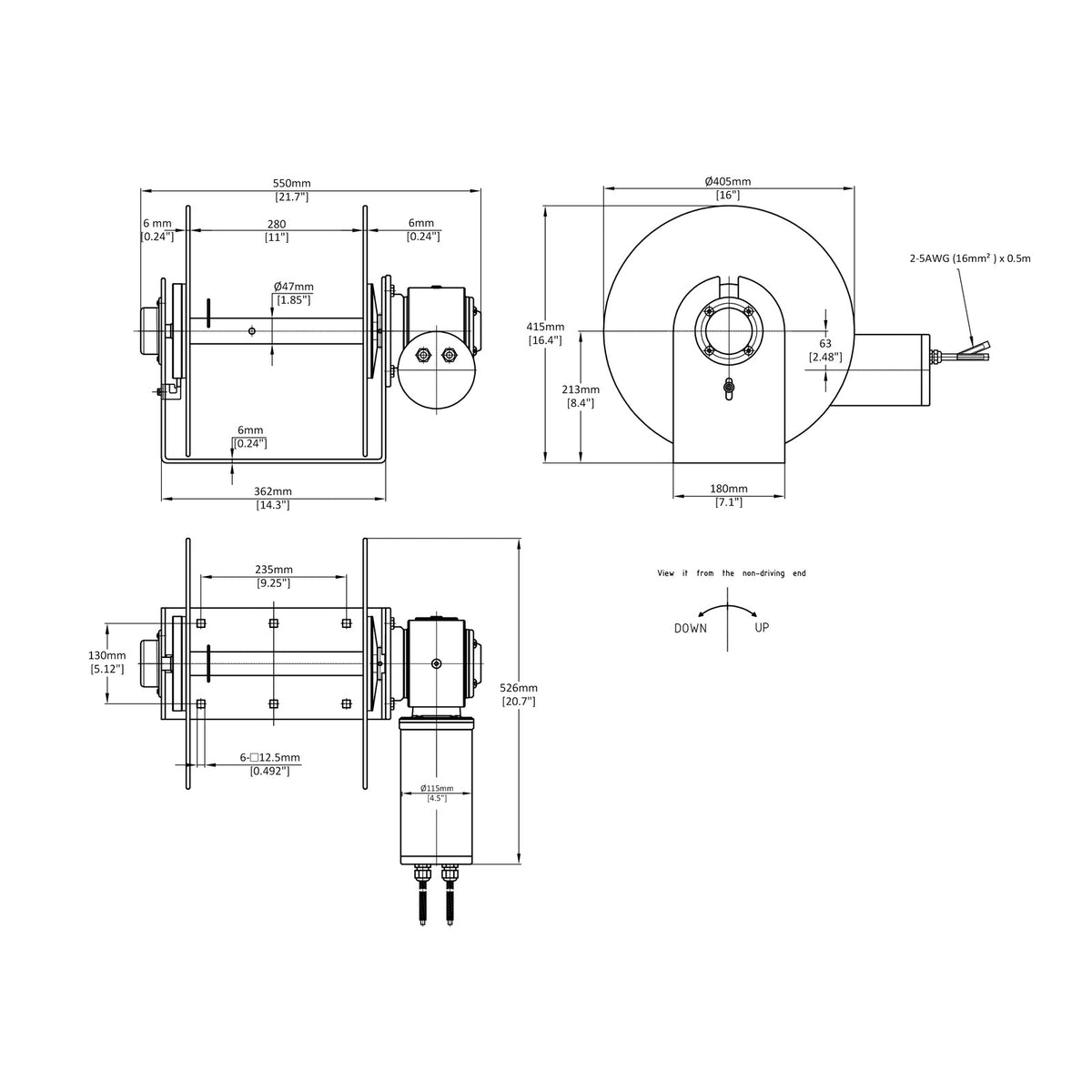

Technical Drawing

Commercial XL Drum Anchor Winch

Tap or click a drawing to open it full-size in a new tab.

Commercial XL Drum Anchor Winch

Patented design
Free shipping
$5,720.14 AUD
$6,355.71 AUD
10% OFF

Black Friday SaleEnds Cyber Monday, 30 November

Sale price
Unit price
per

inc. GST

Size chart

In stock
SKU: 9005
4.9 on Google
Suits Boats Up To9-14m
Motor, Gearbox, Drum316 Stainless Steel
WaterproofIP68
Fast FallTrue

Free shipping anywhere in Australia. Add accessories and anchors and they ship free too.

Request A Quote

Commercial XL Drum Anchor Winch SKU 9005

A True Free Fall Drum Winch For Large Vessels

Drop fast. Hold hard. Built for commercial use.

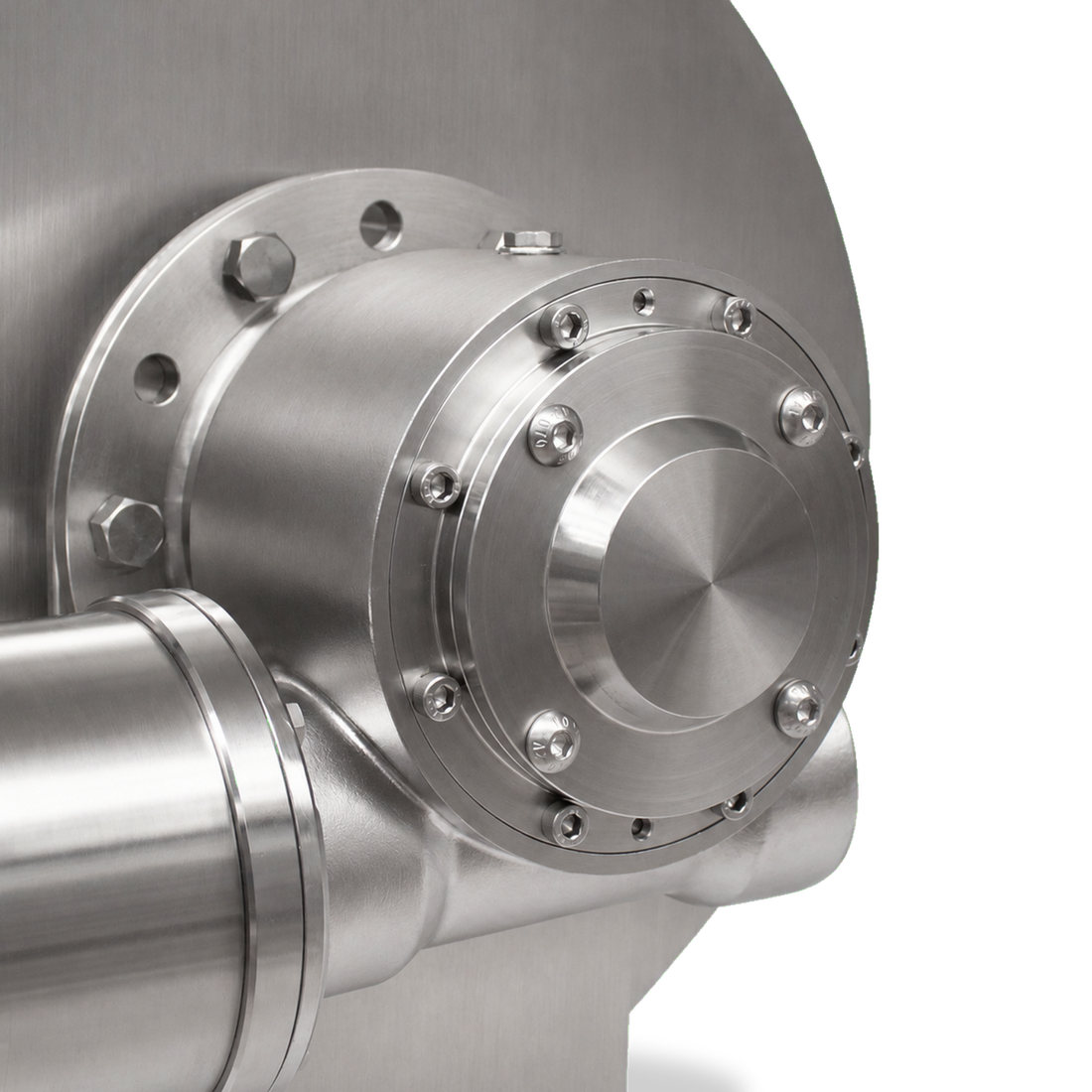

Commercial XL Drum Anchor Winch - image 2
Overview

Our international award winning Drum Winches feature specifically designed marine grade patented motors and oversized Worm Drive Gearboxes and are IP68 rated to suit even the harshest environments. The motors can be moved into 12 different positions to ensure that each Drum Winch can be installed on almost any vessel.

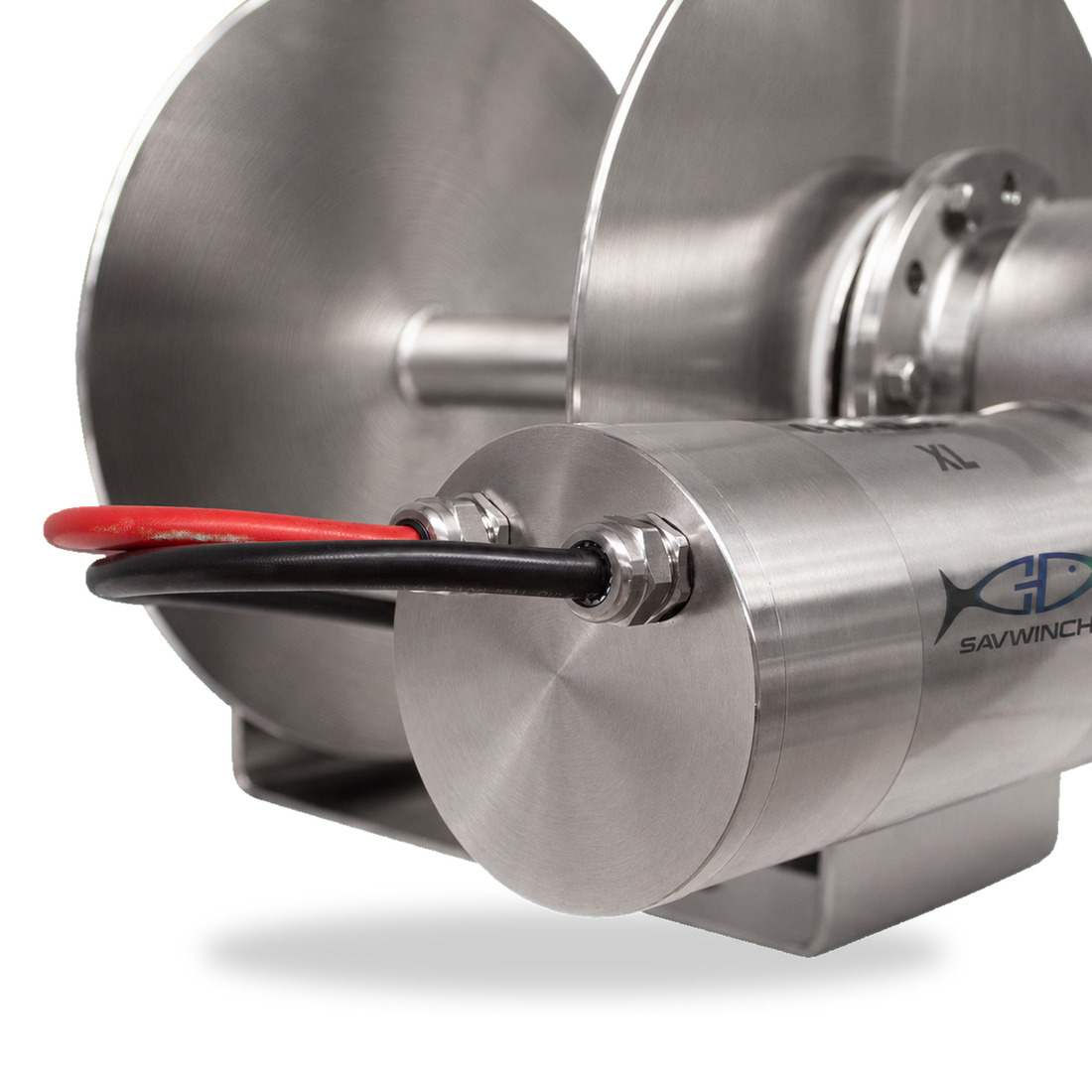

Commercial XL Drum Anchor Winch - image 3
In detail

The Commercial Range is our only range of Drum Winches to feature a true free fall system. While our smaller Winches can utilise our EFF™ Electronic Fast Fall System, the Commercial XL can freely drop the anchor, getting you to your mark as fast as the anchor can drop.

At a glance

Includes an Up/Down Switch, Solenoid, Circuit Breaker, Guide Roller and Free Fall Accessories. Custom rope kits are available on request. Suitable for boats 9 to 14m (30 to 46ft).

Patented technology

Engineered To Survive The Water It Works In

Two things inside this winch that you will not find on a spec sheet comparison.

Patented injection mould

Sealing the motor was not enough. A patented injection mould fills every air pocket inside the motor, so there is nowhere for condensation to form.

Condensation is one of the main causes of motor failure in the marine industry. Once water takes hold, rust and corrosion follow. The casing is a solid block with no covers or sleeves.

Savwinch drum winch motor housing shown disassembled with internal components

Emergency manual release

Drop your anchor without power. An allen key disengages the drum so it spins freely, and a hand crank can be fitted to wind the winch back in if your battery fails.

Close up of the winch gearbox with the emergency manual release shaft and allen key fitting exposed

Product Specification

Series
Commercial
Motor
316 Stainless Steel
Gearbox
316 Stainless Steel
Drum
316 Stainless Steel
Fast Fall
True
Waterproof
IP68
Voltage
12V (24V on request)
Suits Boats Up To
9-14m
Weight
50kg
Width
550mm
Height
415mm
