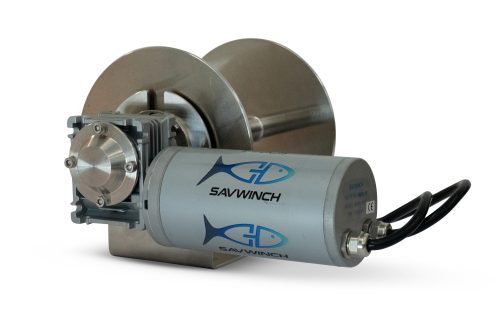

Electric Anchor Winches
A drum anchor winch winds your rope and chain onto a drum and stores them there, much like a fishing reel holds line. Our international award-winning drum electric anchor winches represent the pinnacle of drum winch boat anchor technology. These models feature oversized Worm Drive Gearboxes and patented marine-grade motors. Each motor is IP68-rated, delivering reliable performance even in the most demanding marine conditions, and your marine boat winch is built to handle anything.
- IP68 sealed motor
- 316 marine stainless drum
- 3-7 yr warranty
The Full Drum Winch Range
Suits boats up to 4.5m / 15ft
Suits boats up to 4.5m / 15ft
Suits boats up to 6m / 19ft
Suits boats up to 7m / 23ft
Suits boats up to 6m / 19ft
Suits boats up to 7m / 23ft
Suits boats up to 8m / 26ft
Suits boats up to 4.5m / 15ft
Suits boats up to 6m / 19ft
Suits boats up to 7m / 23ft
Suits boats up to 8m / 26ft
Suits boats up to 5.2m / 17ft
Suits boats up to 5.2m / 17ft
Suits boats up to 5.2m / 17ft
Not Sure Which Model Fits Your Boat?
Answer four questions and we'll size one to your boat.
Installation and performance
Fits Your Boat. Drops Fast. Performs At Every Size.
12
Mounting orientations
Designed with versatility in mind, each drum winch can be positioned in up to 12 different orientations, allowing for seamless installation on nearly any boat.
100+
Metres per minute with EFF™
Combined with our EFF™ (Electronic Fast Fall) System, these electric anchor winches achieve deployment speeds exceeding 100 metres per minute, helping you drop anchor quickly and stay on schedule.
3
Series, one standard
Our full range of marine boat winch models, the CS™, SS™, and SSS™, provides uniform power and performance across different sizes. Regardless of the model, each drum winch is engineered to excel in marine environments, providing reliability and strength you can count on.
Built For Harsh Marine Environments.
Every marine boat winch in our lineup is IP68 rated, incorporating a patented injection mould that fills air pockets in the motor, ensuring waterproofing and eliminating condensation risks. On Signature and Stainless Steel Series, the motor block is a solid 316 stainless steel casing with no covers or sleeves, safeguarding against corrosion and extending the life of your drum winch boat motor. Classic Series uses the same sealed, injection-moulded design in a powder-coated steel motor block.
IP68 Sealed Waterproof Motor
Every motor, on every series, is fully sealed against dust and continuous water immersion, built for marine duty.
Self-Locking Worm Drive
Holds the anchor under load and will not back-drive, standard across the whole range.
Oversized Gearbox
A generously sized gearbox spreads the load for a longer working life under strain.
Fully Submersible
O-ring sealed housings, rated for continuous submersion, not just splash resistance.
Injection-Moulded Internals
Patented, precision moulded components keep moisture out of the motor core and stop condensation building up.
12 Mounting Positions
Index the motor to suit almost any bow, on any of the three series.
EFF™ Fast Fall Compatible
Every drum winch is compatible with the patented, multi award-winning Electronic Fast Fall System, released in 2011 as the world's first clutch-free fast fall system, paying out rope and chain at over 100 metres a minute.
Solid Block Motor Casing
Machined from a solid block rather than a sleeved casing, adding strength where the motor meets the housing.
3 to 7 Year Warranty
3 years on Classic Series, 5 years on Signature Series, and 7 years on Stainless Steel Series, backed across Australia and New Zealand.
Emergency Manual Release
An allen key disengages the drum for a controlled free-spin anchor drop, backed by a hand crank in case power ever fails.
For maximum reliability, our IP68 motors incorporate an advanced injection mould design to fill all internal air pockets, preventing condensation, one of the leading causes of motor failure in the marine industry. With this added layer of protection, your winch remains free of rust and corrosion, even in extreme marine environments.
Condensation is one of the main causes for motor failure in the marine industry. When condensation takes hold, the water in the motor can cause all sorts of problems including rust and corrosion. To further combat condensation, our motors are a solid block casing with no covers.
Each marine boat winch model features an emergency release. With an allen key, you can disengage the drum winch, allowing free spin to drop your anchor in urgent situations. The hand crank option also provides a safe method to release your anchor manually if power fails, offering peace of mind for those venturing into unpredictable waters.
Classic, Signature, Or Stainless Steel
All three series share the same sealed motor design, the same self-locking worm-drive gearbox, and warranty cover in Australia and New Zealand. Here is where they differ.
Warranty terms shown are for Australia and New Zealand. International warranty terms vary by region, contact your local distributor. Full terms are on our warranty page.
Everything Else That Goes On The Bow.
Boat Anchors
SAV Slider™, Claw Slider™, and Fixed Shank Plough.
Explore
Rope and Chain
Pre-spliced double braid rope and chain kits sized to your winch, ready to run straight off the drum.
Explore
Bowsprits
Signature, Swivel Arm, and Classic bowsprits to carry the anchor clear of the hull.
Explore
Backing Plates
Reinforce the mounting point so your winch is bolted to solid backing, not just gelcoat.
ExploreDrum Winch FAQs
Savwinch sets the standard in quality, performance and ease of operation. Our latest Drum Winch range now delivers unparalleled power and speed, designed to exceed the demands of any vessel. With strength to spare, these winches ensure you'll always have the performance you need, and more, for every adventure on the water.
Looking for a hassle-free, high-performance, world-class winch? Choose Savwinch! Shop confidently with our industry-leading warranty, customer support, 24/7 support hotline, and global service network. Backed by years of hands-on marine expertise, our team will help you select the ideal marine boat winch and accessories tailored to your vessel's needs.
The questions we hear most before someone buys their first Savwinch drum winch.
What Is An Anchor Winch?
An anchor winch is a winch fitted at the bow of a boat that lowers and raises the anchor, rope, and chain, so you don't have to haul them up by hand. An electric anchor winch does this at the press of a switch. The two common types on recreational boats are the drum winch and the windlass.
What Is A Drum Anchor Winch?
A drum anchor winch is an anchor winch that winds the rope and chain onto a drum and stores them there, much like a fishing reel holds line. Press the up/down switch and the drum turns one way to lower the anchor and the other way to bring it back up.
Our drum winches are designed, owned, and engineered in Australia. Every Savwinch drum winch has a 316 stainless steel drum and an IP68 rated motor, and the motor can be moved into 12 different positions so the winch can be installed on almost any vessel. Add our optional EFF™ Electronic Fast Fall System, and a Savwinch drum winch can reach speeds of over 100m per minute on the way down.
Drum Winch Vs Windlass: What's The Difference?
The main difference between a drum winch and a windlass is where the rope and chain go: a drum winch winds them onto its own drum, while a windlass feeds them over a gypsy and down into an anchor locker. A drum winch can be mounted inside the anchor locker, on the deck, or under the deck with a hawse pipe, so it works on boats with or without an anchor locker.
Two things to know before you choose a drum winch:
- A drum winch needs short-link chain. Short-link chain sits flat and stacks neatly on the drum without jamming. Standard long-link or proof chain will not spool correctly.
- A drum winch is sized to your boat. Each model is matched to a maximum boat size, and SavMatch™ shows which model suits yours.
Which series fits my boat?
Classic Series covers boats up to 8 metres and pairs a powder-coated steel motor with a 316 stainless steel drum and housing. Signature Series and Stainless Steel Series both run our full size range and suit anything from a trailerable boat to a larger vessel.
If you fish salt water heavily or leave the winch exposed to the elements for long periods, Signature Series or Stainless Steel Series will outlast Classic Series in that environment. Use our SavMatch™ tool for a model recommendation based on your boat length.
What is the difference between Signature Series and Stainless Steel Series?
Signature Series uses a 316 stainless steel motor and drum with a marine-grade aluminium gearbox, and carries a 5 year warranty. It is our most popular series.
Stainless Steel Series takes it further with a full 316 stainless steel motor, gearbox, and drum, and carries a 7 year warranty. Both run the same size range and the same EFF™ Fast Fall compatible worm-drive gearbox.
How much power does a Savwinch drum winch draw?
Voltage and power draw vary by model, larger models in the range are built for larger boats and draw more current. Check the specifications on your model's product page, or ask us before ordering if you are unsure.
How do I install a drum winch?
Each drum winch is supplied with mounting hardware sized to that model and mounts to a bow platform or bowsprit, with the motor set in one of 12 positions to suit your bow shape.
We recommend professional installation, particularly for wiring. Check our Backing Plates and Bowsprits collections for compatible mounting hardware.
What does the warranty cover and how do I make a claim?
Warranty runs 3 years on Classic Series, 5 years on Signature Series, and 7 years on Stainless Steel Series for Australian and New Zealand customers. International warranty terms vary by region, contact your local distributor.
Warranty does not cover uncontrolled corrosion, normal wear and tear, unauthorised modification, or improper installation. Read the full terms and submit a claim on our warranty page.
Why doesn't this page show a price?
This page covers the full Drum Winch range, so pricing varies by model, rope kit, and accessories. Open any product to see its price and configure the right setup for your boat.
